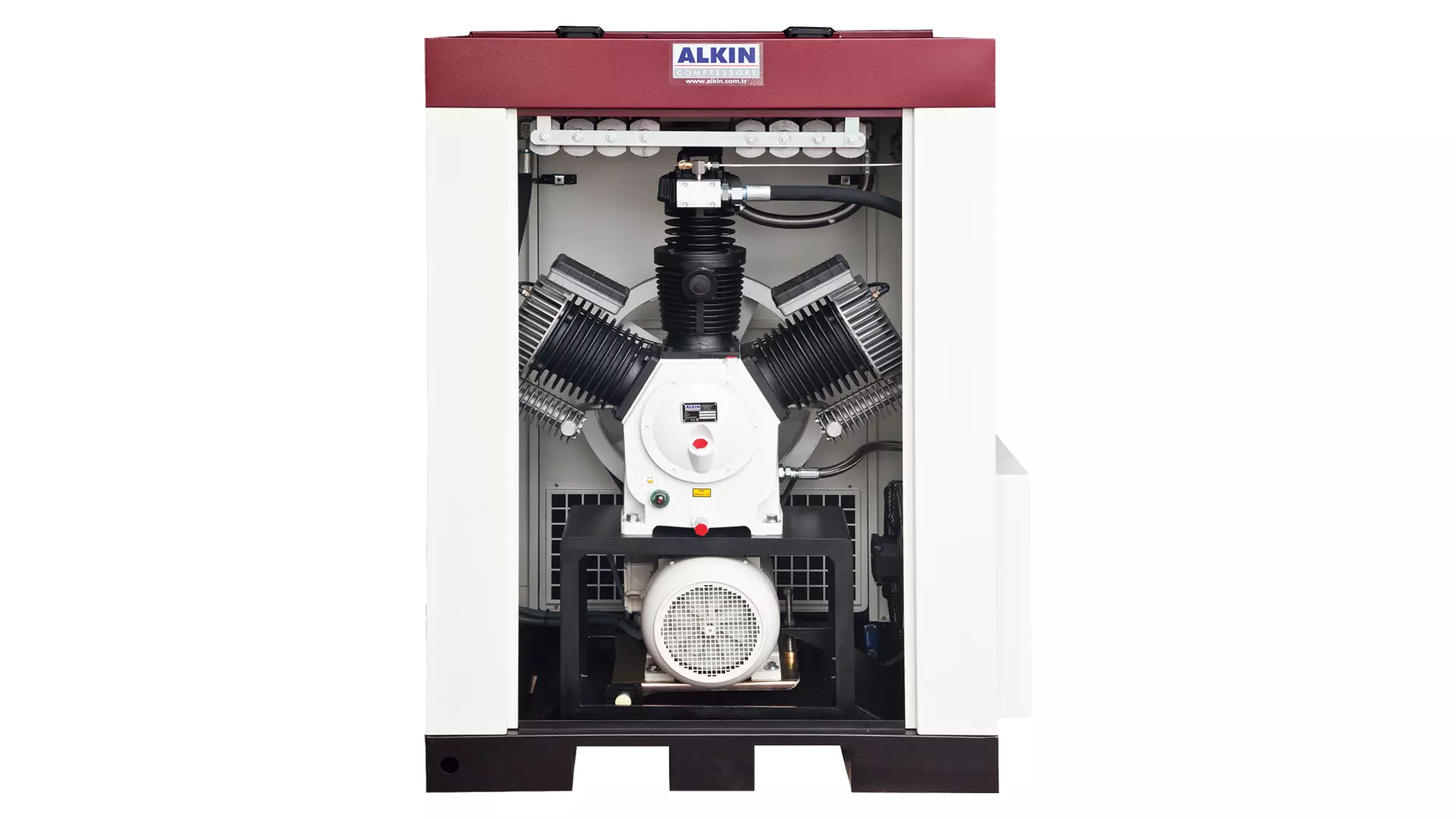

524 Canopy
Compressors in the medium pressure series deliver compressed air up to 80 bar safely and effectively. These compressors have two-stages, reciprocating, air-cooled, splash lubricated design that combines technology and high quality.
Technicial Specifications
| Model | Working Pressure | Displacement Capacity | Motor Power | Speed | Number Of Stage | Number of Cylinder | Weight | Dimensions (cm) | ||||||
| bar | psi | lt/min | m3/h | cfm | kw | hp | rpm | kg | W | L | H | |||
| 524 Canopy | 40 | 580 | 930 | 56 | 33 | 11 | 15 | 720 | 2 | 2 | 530 | 77 | 111 | 160 |
| 40 | 580 | 1225 | 74 | 44 | 15 | 20 | 950 | 2 | 2 | 550 | 77 | 111 | 160 | |
Alkin Compressor reserves the right to change the information and pictures in its brochures without prior notice.
Standard Features
- Intercooler and Aftercooler (Stainless)
- 2nd Stage Water Separator
- Safety Valve at Each Stage
- Check Valve
- Manometers for Input and Output Pressure
- Pressure Switch for Automatic Start/Stop
- Solenoid Valve
- Oil Level Switch
- Electrostatic Painted Chassis
- Oil Level Glass
- Thermal Overload Protection for Electric Motor
- Shock Mounts
- Control and Electrical panel: YΔ Panel, Main Switch, On/Off Buttons, Hour Counter, Emergency Stop Buttons, Control Leds
Optional
- PLC Touch Screen Control System
- Stainless Chassis
Sectors
- Shipyards
- Pet Bottle Filling Industry
- Industrial Applications
- Gas Filling Facilities
- Military Applications
- Test Equipment
Frequently Asked Questions
Air compressors work by compressing atmospheric air in a smaller volume of piston-cylinder, screw, etc. and pressurize it depending on your special needs.
Piston compressors are sufficient for short-term high pressure air needs. If you need a long-life, low-pressure compressor that provides continuous airflow, the screw compressor should be your primary choice.
Alkin Compressors always endeavours to respond to customer enquiries as soon as possible. Please visit contact page our opening times for further information regarding Alkın Compressors’s office hours.
Air/gas compressors produced by Alkın Compressor come with a 2-year warranty, providing they are serviced by ourselves. However, longer warranties for compressors are available on request.
