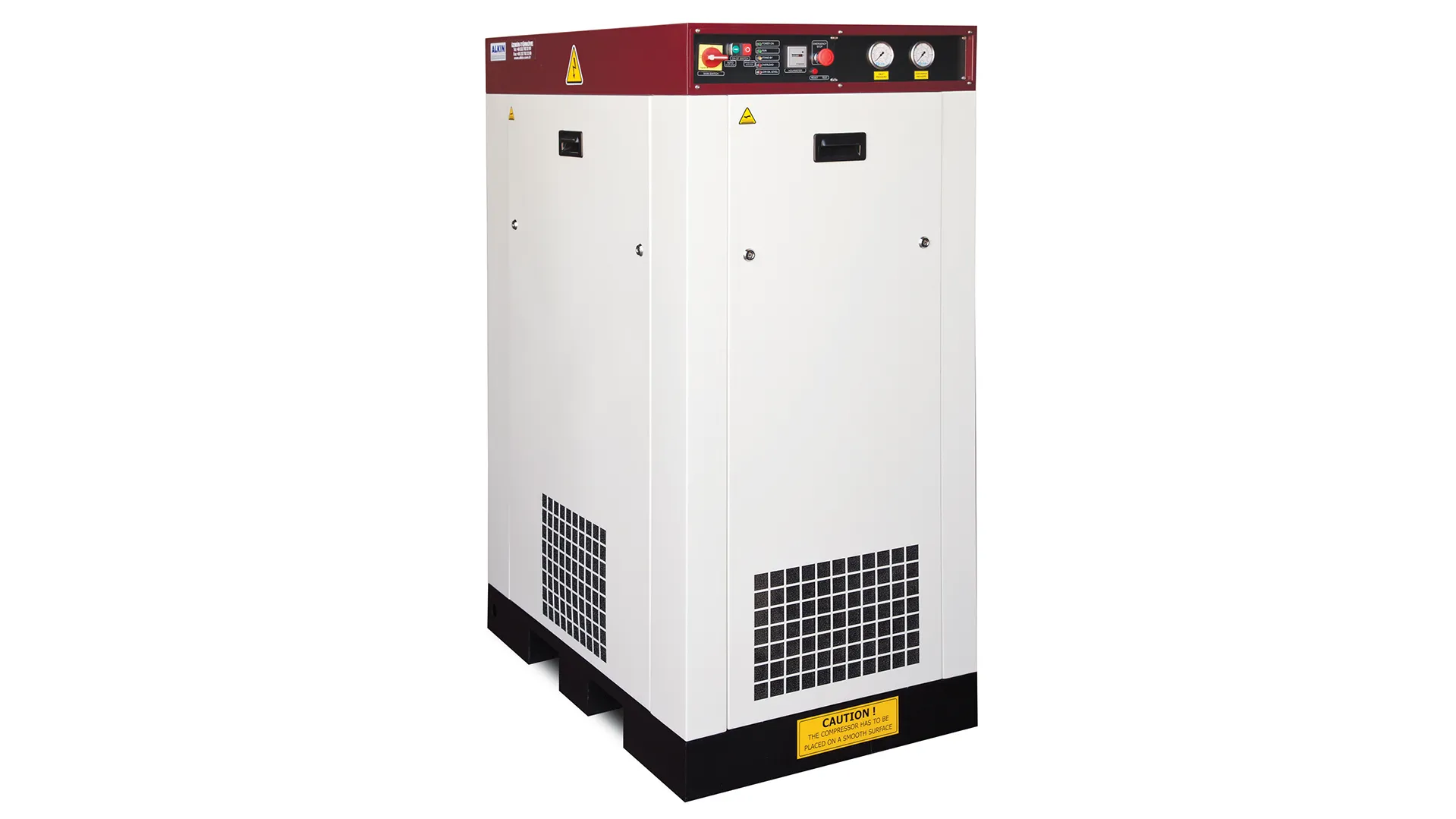

524 Canopy Booster
Booster series compressors are used to compress air in the 7-10 bar pressure range, for laser and plasma cutting in the metal industry, pet blowing in the plastics industry, and gas injection to high pressures, as well as in the field of mine evacuation (inert gases such as nitrogen are used) for high medium and high pressure gas needs. Thanks to its designs that allow hours of high efficiency to work, it provides excellent performances.
Technicial Specifications
| Model | Input Pressure | Working Pressure | Free Air Delivery (FAD) | Motor Power | Speed | Number of Stage | Number of Cylinder | Weight | Dimensions (cm) | ||||||
| bar | bar | psi | l/min | m3/h | cfm | kW | Hp | rpm | kg | W | L | H | |||
| 524 Canopy Booster | 8 | 40 | 580 | 2500 | 150 | 88,3 | 11 | 15 | 670 | 1 | 2 | 440 | 77 | 111 | 161 |
| 8 | 40 | 580 | 3400 | 204 | 120 | 15 | 20 | 800 | 1 | 2 | 150 | 77 | 111 | 161 | |
- Alkin Compressor reserves the right to change the information and pictures in its brochures without prior notice.
Standard Features
- P41 Purifier and Refillable Cartridge (Stainless)
- 2nd and 3rd stage water separator,
- Intercooler Pipes (Stainless)
- Aftercooler Pipes (Stainless)
- Priority Valve and Check Valve
- Oil Level Glass
- Oil Level Switch
- Electrostatic Painted Chassis
- Safety Valve Each Stage
- Shock Mounts
- Manuel Start/Stop
- Manuel Discharge
- Thermal Overload Protection for Electric Motor
- Control Panel: On Off Buttons, Hourmeter, Emergency Stop Button, Oil Pressure Gauge
- 2 Complete Filling Hoses (Yoke, Sleeve Valve, Manometer, DIN Adapter)
Optional
- Automatic Start / Stop
- Automatic Drain
- Stainless Chassis
- Extra Filling Hose
Sectors
- Industrial Applications
- Pet Blowing
- Military Application
- Mines
- Gas filling plant
Frequently Asked Questions
Air compressors work by compressing atmospheric air in a smaller volume of piston-cylinder, screw, etc. and pressurize it depending on your special needs.
Piston compressors are sufficient for short-term high pressure air needs. If you need a long-life, low-pressure compressor that provides continuous airflow, the screw compressor should be your primary choice.
Alkin Compressors always endeavours to respond to customer enquiries as soon as possible. Please visit contact page our opening times for further information regarding Alkın Compressors’s office hours.
Air/gas compressors produced by Alkın Compressor come with a 2-year warranty, providing they are serviced by ourselves. However, longer warranties for compressors are available on request.
